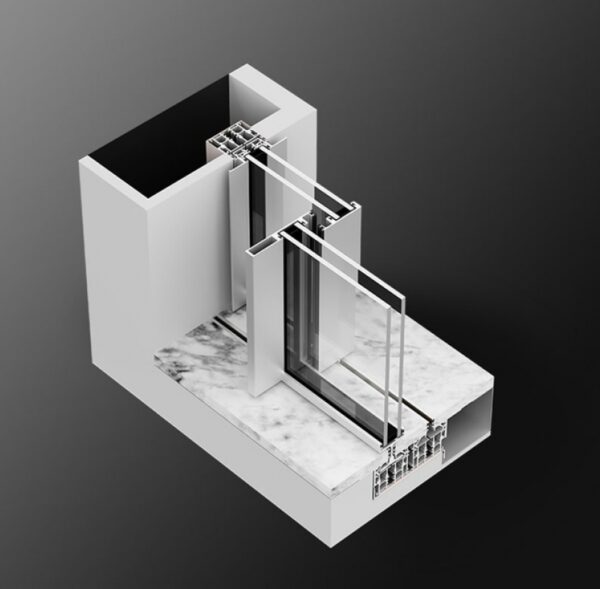

HYLINE 40

IDEAL FOR EVERY SITUATION

This minimalist system is suited for premium jobs. It was developed to use double glass up to 38mm thickness, up to 6m height or a glass surface of up to 28m2. This robust window offers excellent acoustic and thermal performance. Developed with sophistication and attention to design in mind, this system is characterized by the smallest central mullion in the market and an integrated floor option that fully hides the frame, resulting in a obstacle-free threshold. This system allows the inclusion of blackouts, blinds, screen in the interior glass and fly screens.

Category:

Description

01

Unique finishing

In order to perfectly integrate the aluminum frame in the aesthetics of the area, it’s possible to customize the finishing.

02

Motorization possibility

The motorization possibility allows an increase in comfort through automatic systems in the aluminium frames.

System details


The HYLINE systems have a set of specifications that are important for a quality work at a higher level of demand. For perfect framing systems, details do make a difference.



LARGE GLASS SURFACES

LARGE GLASS SURFACES

Maximum capacity of 6 meters, out of a total of 18m². It is possible to move 1000 kg of weight with a single touch.

HYLINE's Integrated Floor System

HYLINE’s Integrated Floor System

The HYLINE System allows different types of finishings for the rims of pavement. It is possible to use the same finishing throughout the whole area where it is inserted.

Blade System

Blade System

It allows, on double glazing, shading devices such as blades and screens that can be electrically operated. High quality system without obligatory maintenance.

Built-in floor

Built-in floor

Level floor solution with visible bearings with uniform weight distribution system.

Blackout System

Blackout System

It allows, on double glazing, shading devices such as blackouts, screens and blades, which can be electrically operated. High quality system without obligatory maintenance.

Electromagnetic Lock

Electromagnetic Lock

Possible integration of an electromagnetic lock for better security and control.

Integrated Lock

Integrated Lock

You can integrate a key lock, thus ensuring greater security and control.

Personalized Locks

Personalized Locks

A wide choice of possible finishings, including diamonds.

Multi-point Locking System

Multi-point Locking System

Option to lock with key on the wall.
Invisible aluminium frame

Shutters

Shutters

In addition to glass, marble, wood, fly screen or aluminum panels may also be an option.

Types of openings

Types of openings

Possibility of Monorail, Birail, trirail or unlimited. Corner opening and center opening.
